F-16 external stores

No longer available, this page for information only

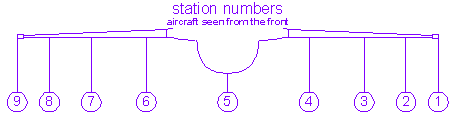

You can upgrade the F-16A with a complete set of external stores for all 9 stations! We offer kits for any of them. They are normally non-functional and serve the purpose of static decoration mainly.

We recommend to exercise caution when flying with any wing mounted F-16 external stores as they put extra strain on the wings. A scale routine can safely be flown but do not attempt any high speed runs with these! There are just too many variables in building techniques which could result in undesired effects and it's better to be safe than sorry! read more

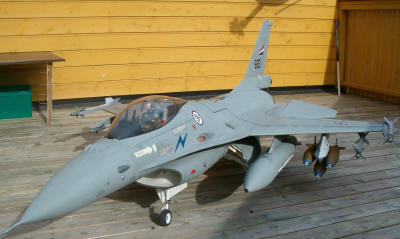

Loaded Norwegian F-16A by Gudmund Malones. The Mk-82 bombs on triple racks are not available, sorry!

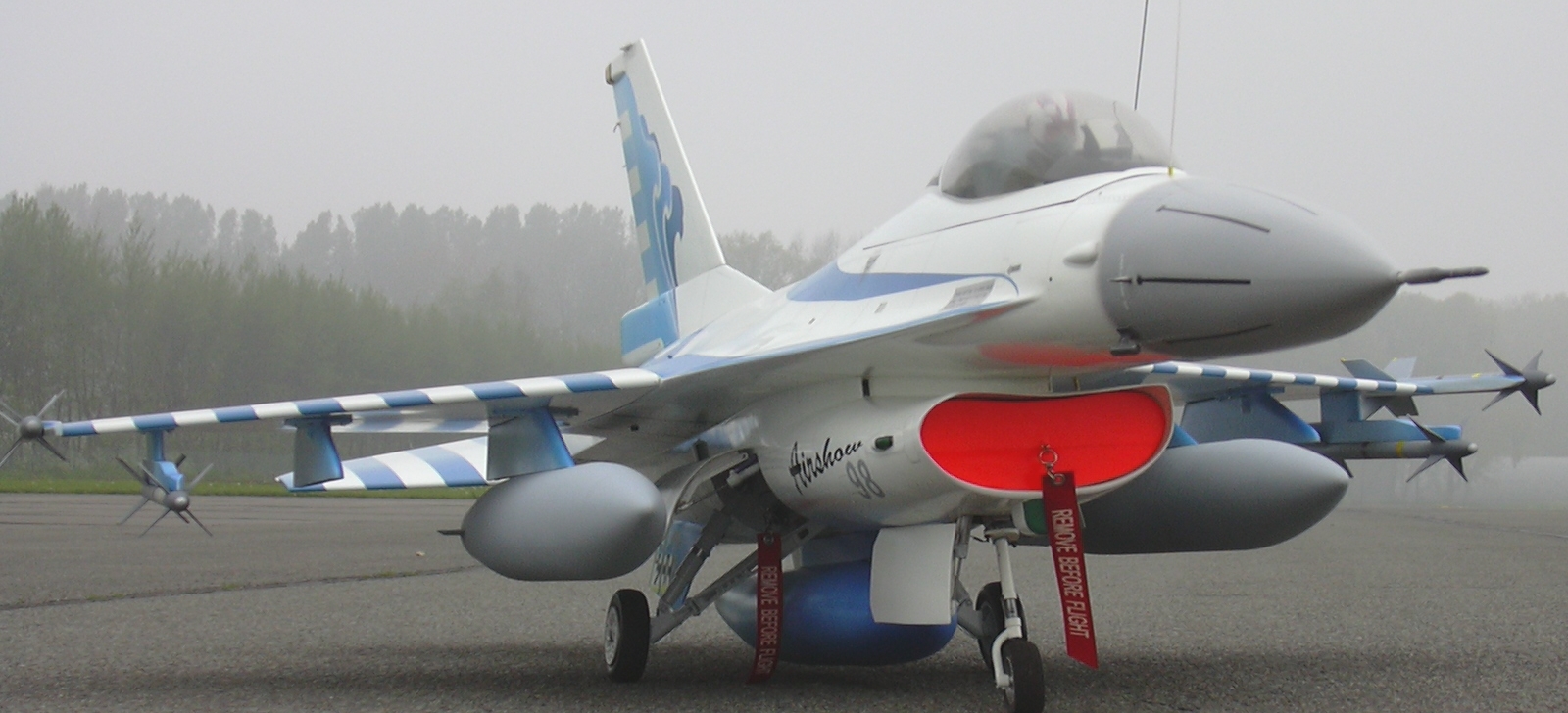

Geert Van de Voorde mounted all available external stores on his F-16A (except Smokewinders)

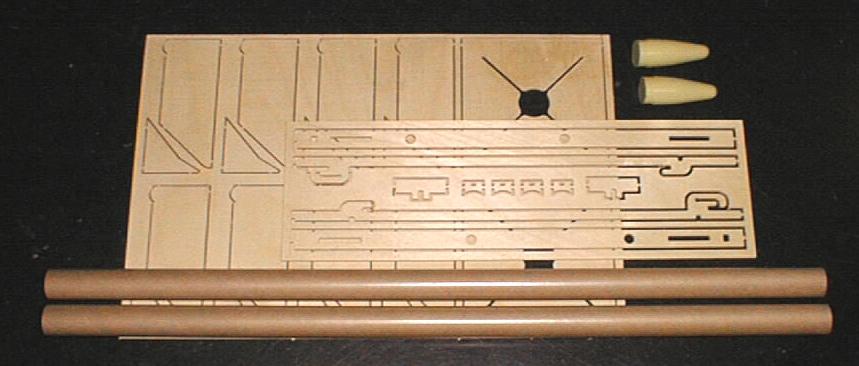

PA430 Kit for pair of AIM-9L Sidewinder missiles

This kit will allow you to construct a pair of AIM-9L Sidewinder missiles. The missiles are suitable for the wingtip launchers (stations 1-9) as already supplied in the F-16 kit (PA402) or for the optional underwing launchers (PA434 for stations 2-8). They are easily removable for transport: the hooks on the missiles simply engage backwards into slots on the launchers. All parts are precut and fixtures are supplied to align the fins perfectly.

Overall length: 419 mm / Tube diameter: 20 mm

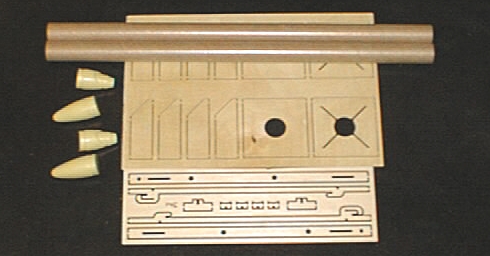

Contents of the PA430 kit:

  • 2 ea. Cardboard tube ¾" diameter
  • 2 ea. Resin cast nose cone
  • 1 ea. Sheet of 1.5 mm plywood parts (CNC cut)
  • 1 ea. Sheet of 3 mm plywood parts (CNC cut)
  • 1 ea. Manual with photos and drawings
  • 1 ea. Full size CAD plan

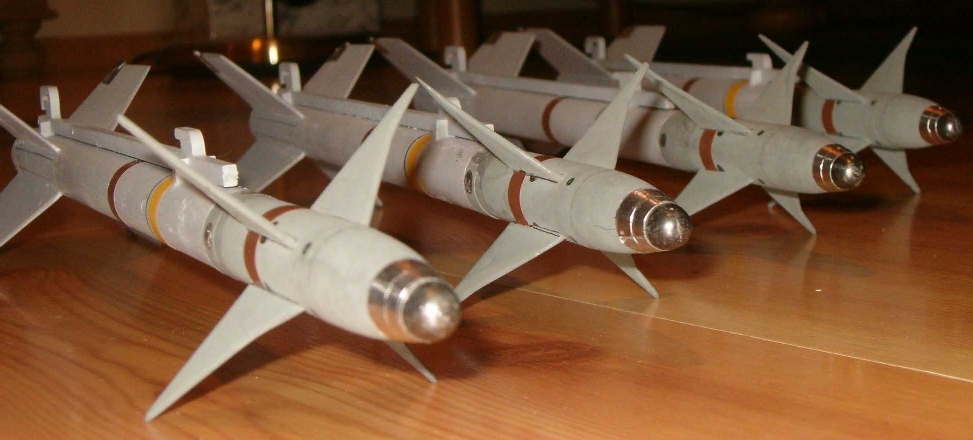

nice set of missiles built from two PA430 kits by Gudmund Malones, Norway

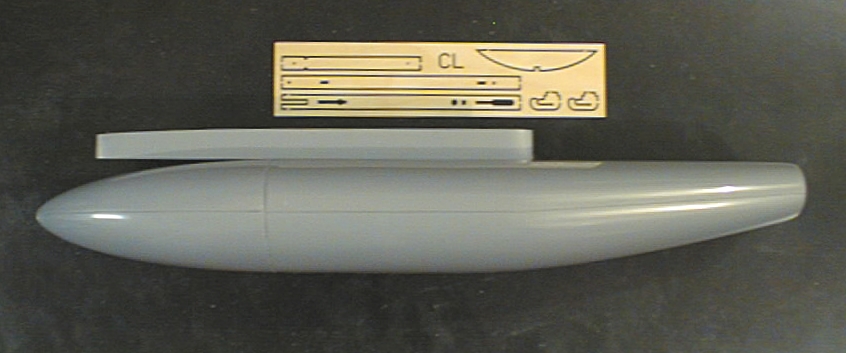

PA431 Centreline pylon & 300 gallon centreline tank

Set of epoxy fibreglass centreline tank and pylon (for centreline station 5) with all precut wood parts. Note: the centreline tank and pylon can only be installed on our F-16 jet models equipped with the scale landing gear (PA481). Ground clearance is insufficient with the standard custom landing gear (PA407). The tank and pylon assembly is easily removable for transport: the slots on the pylon simply engage backwards into hooks attached to the fuselage.

Overall tank length: 620 mm / Tank height: 90 mm / Tank width: 135 mm




Contents of the PA431 kit:

  • 1 ea. Epoxy fibreglass centreline tank main body
  • 1 ea. Epoxy fibreglass centreline tank nose cone
  • 1 ea. Epoxy fibreglass centreline tank pylon
  • 1 ea. Sheet of 3 mm plywood parts (CNC cut)
  • 4 ea. LSHS (Large Socket Head Screw) 2.9x13 mm
  • 1 ea. Manual with photos and drawings
  • 1 ea. Full size CAD plan

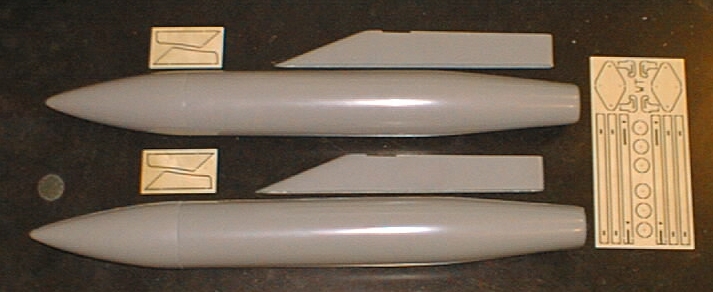

PA432 Pair of wing pylons & 370 gallon wing tanks

Pair of epoxy fibreglass wing tanks and pylons and precut wood parts. The tanks are easily removable for transport: the hooks on the tanks simply engage backwards into slots on the pylons. Their normal placement is on stations 4 and 6 (wing pylons closest to the fuselage).

Overall tank length: 761 mm / Tank diameter: 93 mm




Contents of the PA432 kit:

  • 2 ea. Epoxy fibreglass wing tank main body

  • 2 ea. Epoxy fibreglass wing tank nose cone

  • 2 ea. Epoxy fibreglass wing tank pylons
  • 1 ea. Sheet of 3 mm plywood parts (CNC cut)
  • 2 ea. Sheets of 1.5 mm plywood parts (CNC cut)
  • 10 ea. LSHS (Large Socket Head Screw) 2.9x13 mm
  • 1 ea. Manual with photos and drawings
  • 1 ea. Full size CAD plan

PA433 Pair of outboard wing pylons

Pair of epoxy fibreglass underwing outboard pylons and precut wood parts. The underwing pylons are intended for stations 3-7. At this time, we don’t have any suitable stores to suspend from these pylons. Normally, an F-16 would carry bombs or air-to-ground missiles on these pylons.




Contents of the PA433 kit:

  • 2 ea. Epoxy fibreglass pylons
  • 1 ea. Sheet of 3 mm plywood parts (CNC cut)
  • 10 ea. LSHS (Large Socket Head Screw) 2.9x13 mm
  • 1 ea. Manual with photos and drawings
  • 1 ea. Full size CAD plan

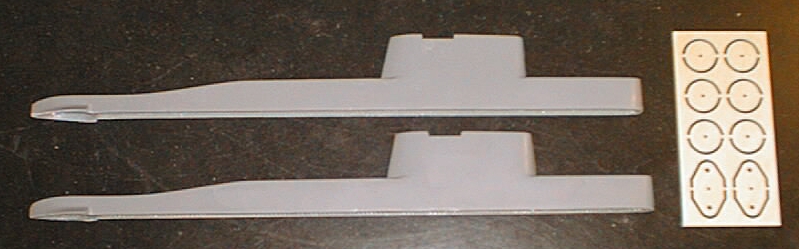

PA434 Pair of underwing missile launchers

Pair of epoxy fibreglass underwing missile launchers and precut wood parts. The underwing missile launch rails are intended for stations 2-8 and can be upgraded with the optional kit for the AIM-9L missiles (PA430).




Contents of the PA434 kit:

  • 2 ea. Epoxy fibreglass missile launchers
  • 1 ea. Sheet of 3 mm plywood parts (CNC cut)
  • 8 ea. LSHS (Large Socket Head Screw) 2.9x13 mm
  • 1 ea. Manual with photos and drawings
  • 1 ea. Full size CAD plan


F-16 price list
