F-104G for Turbine

(Ducted Fan also available)

F-104G finished equipped with standard landing gear, gear doors, wheels & brakes, TOP GUN pilot etc. Metal finish is SOLARTRIM chrome.


Despite its tiny wings, the F-104G Starfighter  is remarkably easy to fly. The big size and the modified airfoil give this spectacular model an unprecedented stability and realism. Large flaps shorten take-offs and provide slow, stable landings. A model that will generate quite some interest at your flying field!

The nose section and the tiptanks (which are also included in the kit) are easily removable for transport. The length of the main section is thus reduced to 1550 mm, so the model will fit in most cars.

A rudder installation kit is available separately (required in the US by AMA).


Tiptanks are included in the kit

F-104 price list

Specifications

Scale:   1/7
Length:   2390 mm (94 inches)
Wingspan (with tiptanks):   1130 mm (44 inches)
Weight:   7,5 kg (16 1/2 lbs)
Suitable Thrust Class:   50 to120 N (12 to 27 lbs)

Kit contents

(general kit info on Jet Kits page)



  • gel-coated epoxy glass main fuselage, nose section, intake liners and bypass duct

  • gel-coated epoxy glass tip tanks, fuselage hatches and scale details

  • high density foam flying surfaces balsa sheeted and carbon reinforced

  • vacformed clear canopy and black plastic cockpit deck

  • CNC routered plywood and balsa parts

  • balsa leading edge and trailing edge stock

  • stainless steel double walled tailpipe

  • complete fuel tank system

  • comprehensive hardware package

  • full size plans

  • photo illustrated detailed manual


Options

F-104 standard landing gear

  • RB520 ROBART 520W1 retracts

  • RB651L ROBART scale nose oleo strut

  • RB103 ROBART main strut covers

  • PA255 complete gear doors set with full pneumatic support accessories

  • PA272 complete wheels and brakes set with full pneumatic support accessories

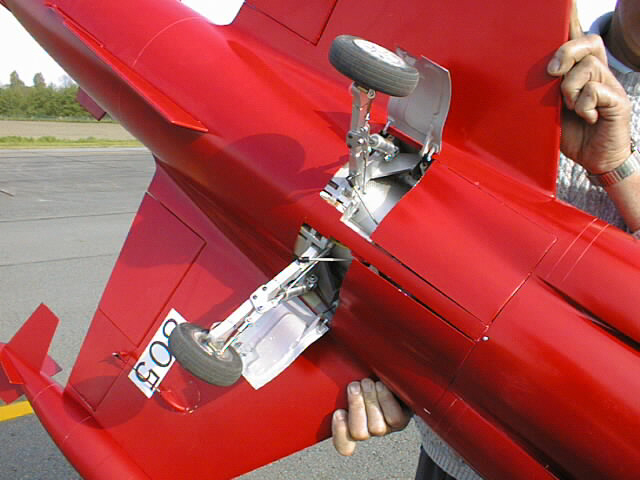

F-104 scale landing gear

  • PA281 complete scale landing gear


F-104 scale accessories


F-104G Photo Gallery

click on photos to enlarge

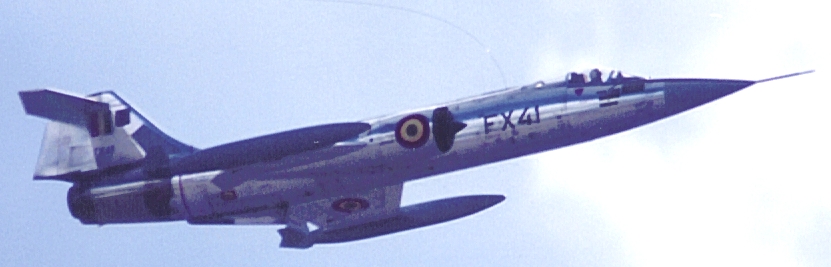

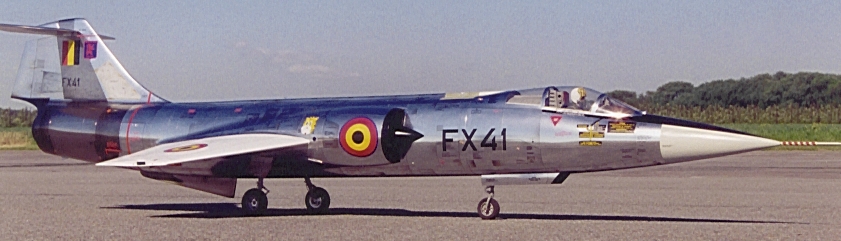

Bare metal F-104 by Wim Reynders, Belgium (top photo by Mike Cherry)

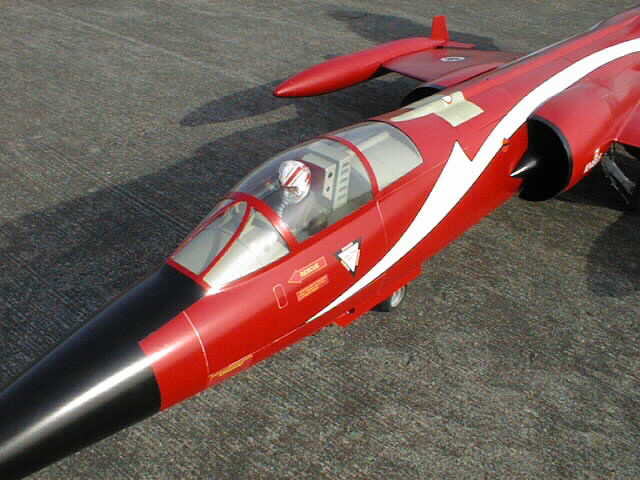

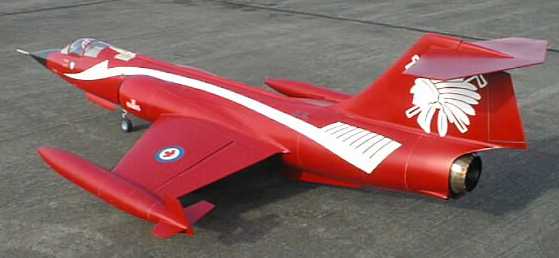

"Red Indian" F-104 by Marc Thienpont

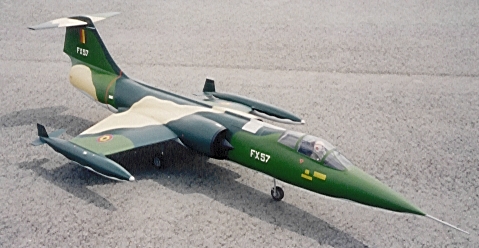

Camouflaged F-104 by Wim Reynders, Belgium

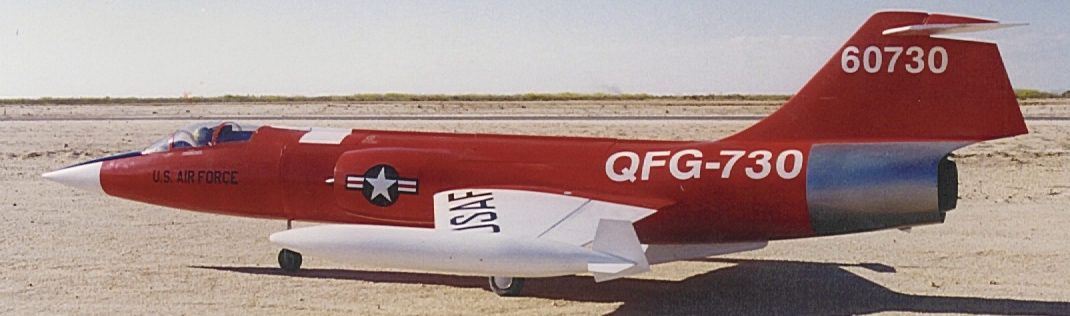

"Target drone" F-104 by Fernando Zapater, Spain

Bare metal F-104 by Philip Avonds, Belgium

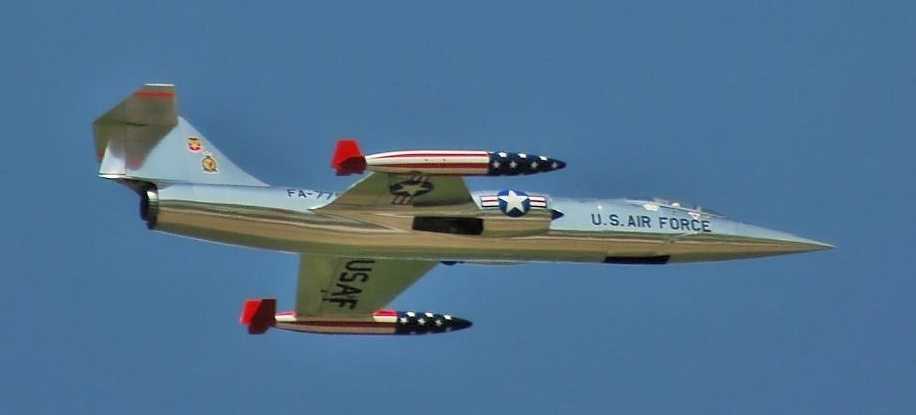

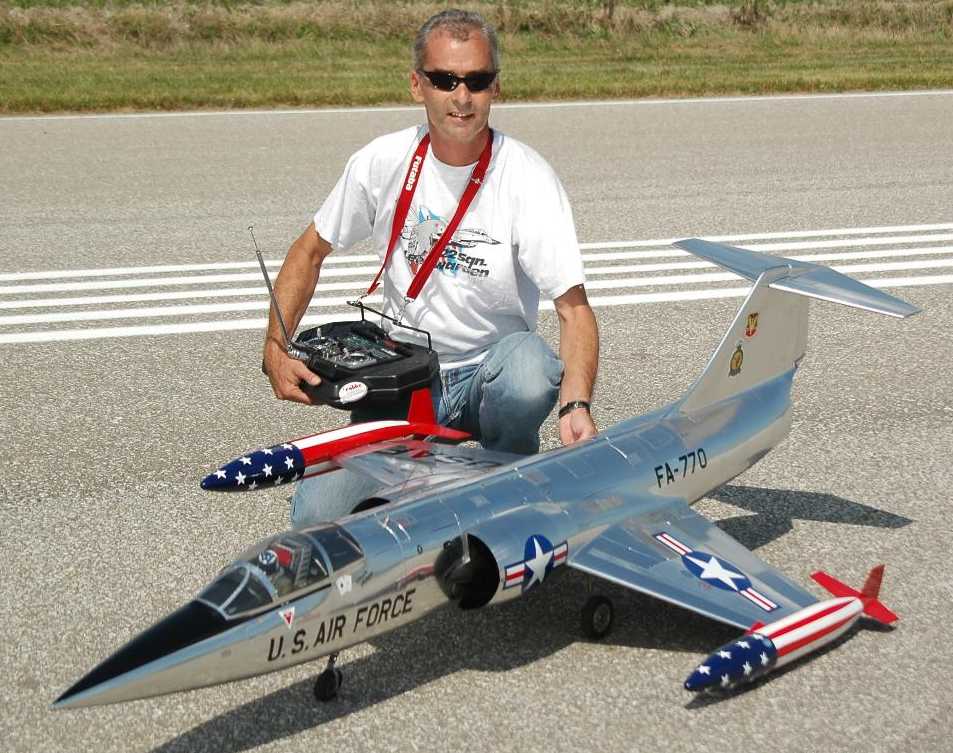

Gorgeous F-104G in bare metal and patriotic US colours by Dutchman Hans Van Dongen (living in Canada)

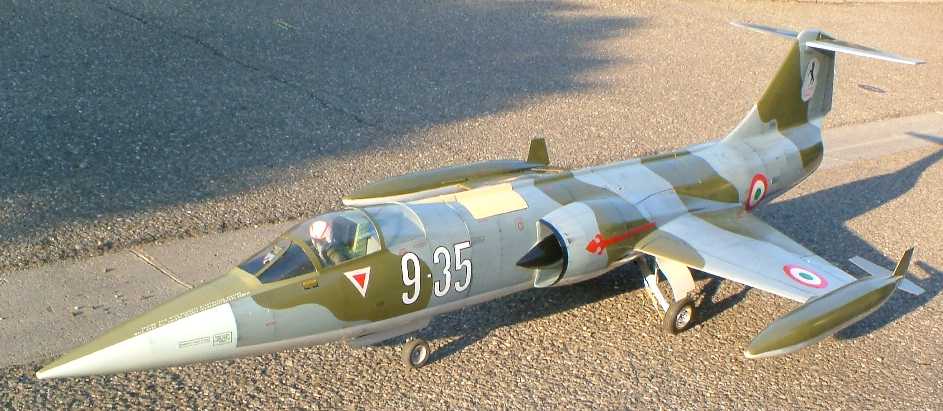

Italian camouflage scheme on this F-104 by Jean-Luc Forgeat of France

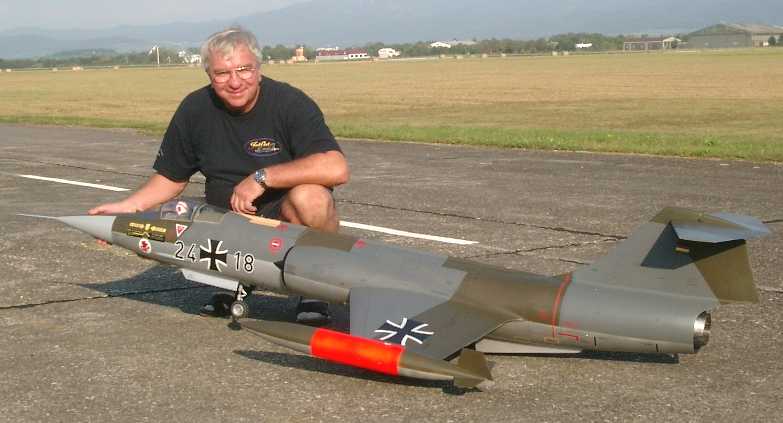

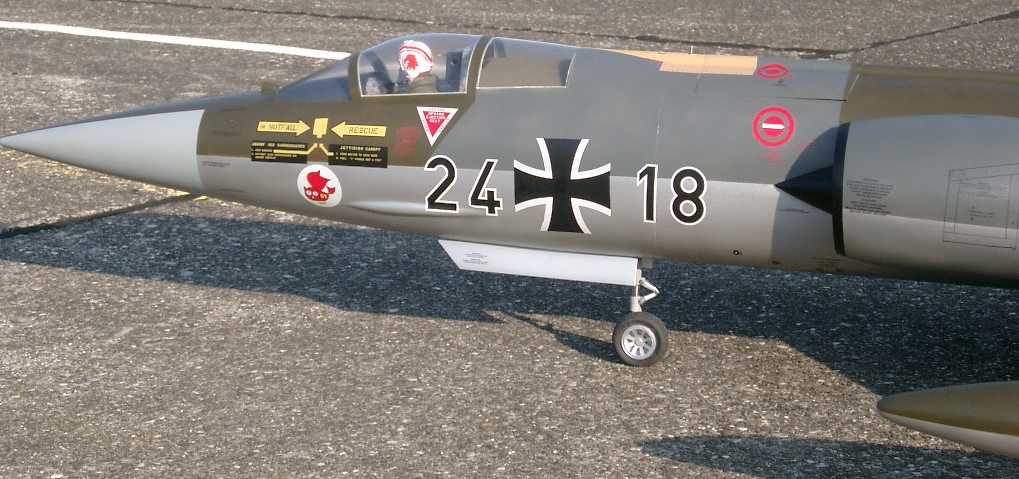

German cmouflage scheme on this F-104G by Holger Schultz of Germany

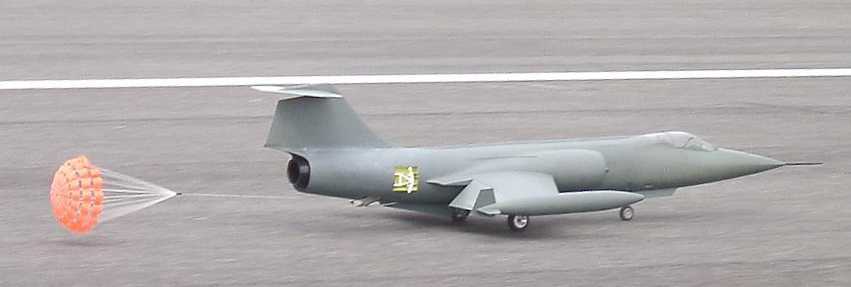

Mark Leavesley and his team from the UK and their very nice F-104 equipped with a dragchute!

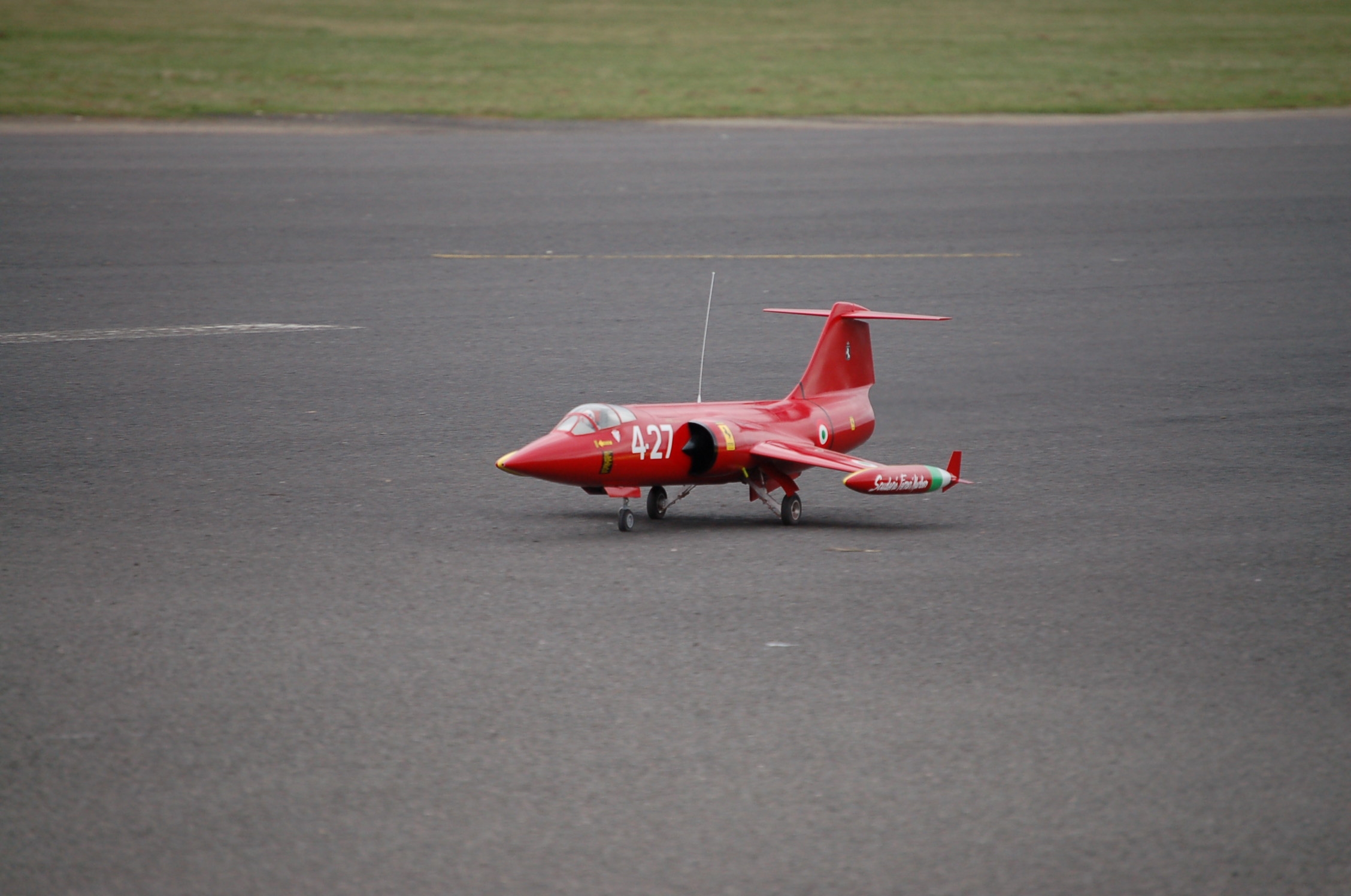

Adam Birmingham from the UK sent in this photograph of his Ferrari F-104

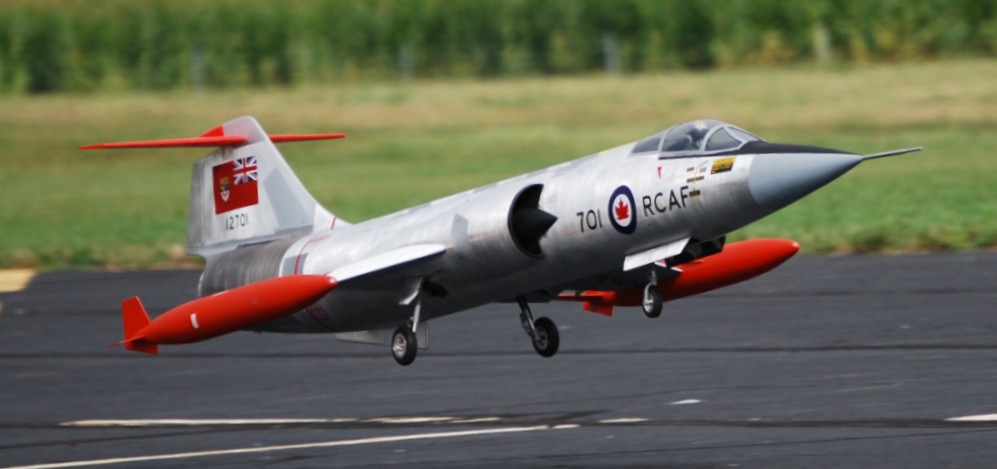

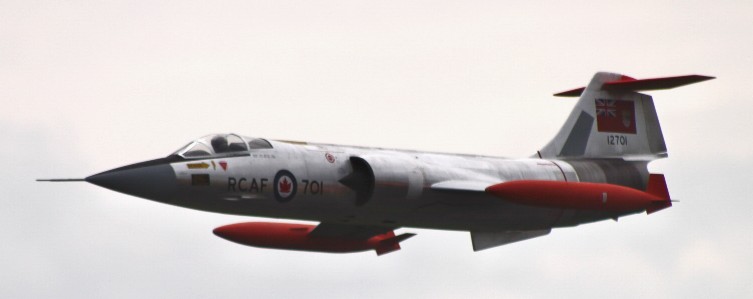

Beautiful CAF F-104 built by Sean McHale from Canada

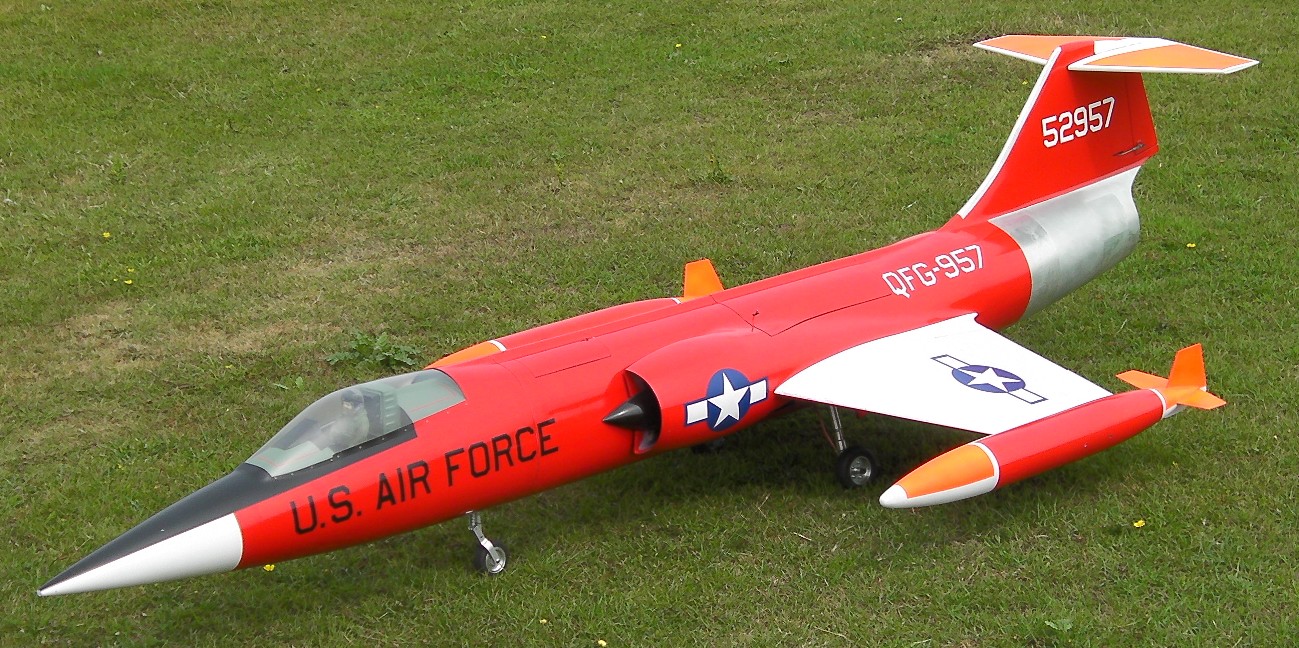

This one is by Roger Andrews
